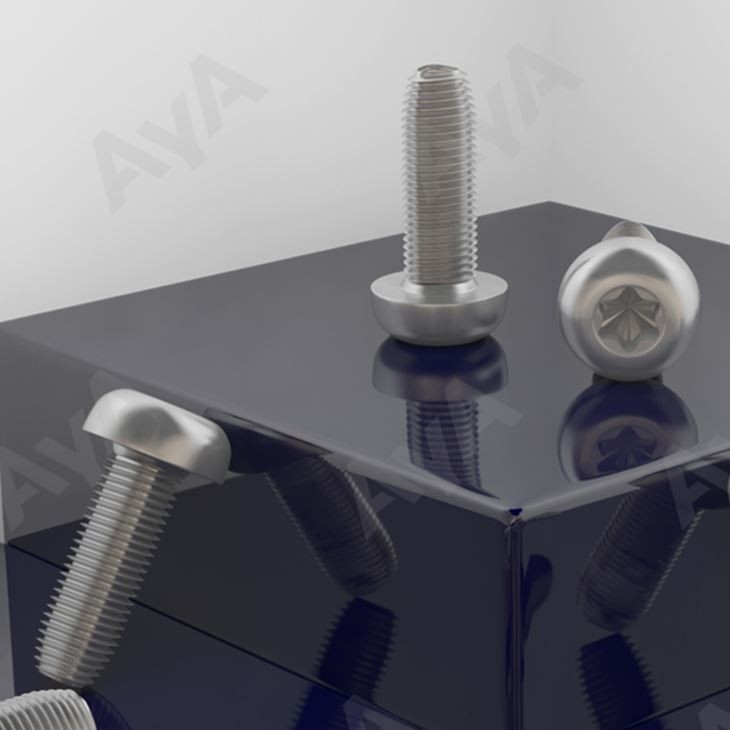

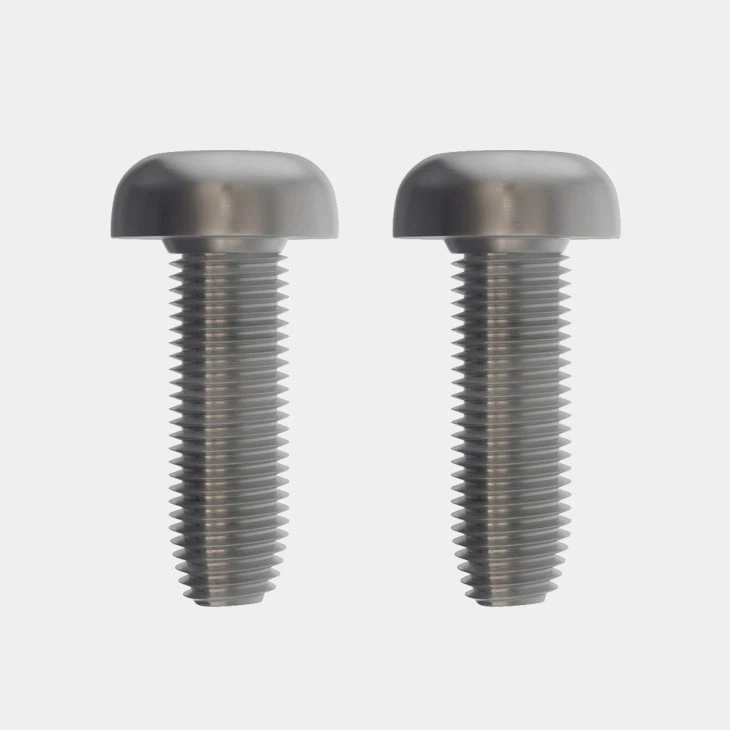

Stainless steel thread siam dan tur screw a ni.
Standard: DIN 7500 (PE) a ni.
Thread chi hrang hrang: Thread-Rolling tih a ni.
Commodity: stainless steel thread siam screw a ni.
Thil hman tur: stainless steel .
A rilru a hah lutuk chuan a rilru a buai em em a, a rilru a hah lutuk chuan a rilru a buai em em bawk a. M2,M3,(M3.5),M4,M5,M6,M10
Finish: plain, passivated, customization
Lu chi hrang hrang: pan lu .
Drive chi hrang hrang: Star Drive .
Type: PE 1000 a ni.
MOQ: 1000kgs a ni.
Lead time: Ni 30 atanga ni 60 thleng
Product Thuhmahruai .
Aya Fasteners (Hebei) Co., Ltd. hi China rama stainless steel thread forming screw siamtu leh supplier zingah chuan a tawnhriat ngah ber pawl a ni. Kan factory atang hian hetah hian China rama siam stainless steel thread forming screw quality tha tak tak lei theih a ni. Price consultation atan min rawn biak theih reng e.
Khawvel puma customized fastening solutions supplier a nih angin AYA service process pawh hi AYA thil siam ang bawkin customer te nen a inhnaih hle a ni. Describing needs to follow-Up services, AYA chuan rang takin leh spare no effort to desping customers solve any fastening problems that lose, to elimining the concern of customers.
Product sawifiahna .
| Product hming . | Stainless steel thread siam dan tur screw a ni. |
| Bungrua | stainless steel a ni a. |
| Nihphung pangngai | DIN 7500 (PE) 1000 a ni. |
Diameter 100 a ni. | M2,M2.5,M3,(M3.5),M4,M5,M6,M8,M10 |
| Zo | plain, passivated, customization . |
| lu chi hrang hrang . | Pan lu a ni . |
| Drive chi hrang hrang . | Star Drive a ni a. |
| Thread chi hrang hrang . | thread-Rolling tih a ni. |
Dimensions Table 1000 a ni.
| screw thread a ni a. d | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | M8 | M10 | |
| P | Mual | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
| b | min min ti a. | 25 | 25 | 25 | 38 | 38 | 38 | 38 | 38 | 38 |
| dk | Max=A lian zawng hi a lian lo hle. | 4 | 5 | 5.6 | 7 | 8 | 9.5 | 12 | 16 | 20 |
| min min ti a. | 3.7 | 4.7 | 5.3 | 6.64 | 7.64 | 9.14 | 11.57 | 15.57 | 19.48 | |
| k | Max=A lian zawng hi a lian lo hle. | 1.6 | 2.1 | 2.4 | 2.6 | 3.1 | 3.7 | 4.6 | 6 | 7.5 |
| min min ti a. | 1.46 | 1.96 | 2.26 | 2.46 | 2.92 | 3.52 | 4.3 | 5.7 | 7.14 | |
| x | max a ni . | 1 | 1.1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3.2 | 3.8 |
| Socket no. | T6 | T8 | T10 | T15 | T20 | T25 | T30 | T45 | T50 | |
| A | 1.75 | 2.4 | 2.8 | 3.35 | 3.95 | 4.5 | 5.6 | 7.95 | 8.95 | |
| t | max a ni . | 0.77 | 1.04 | 1.27 | 1.33 | 1.66 | 1.91 | 2.42 | 3.18 | 4.02 |
| min min ti a. | 0.63 | 0.91 | 1.01 | 1.07 | 1.27 | 1.52 | 2.02 | 2.79 | 3.62 | |
| ①, Material: Self-tapping screw hi cold extrusion steel atanga siam tur a ni. Core hardness chu 290 HV10 atanga 370 HV10 a ni tur a ni. Surface hardness chu heat treatment hnuah 450 HV0.3 tal a ni tur a ni. | ||||||||||
Product details .
Product a thatna te .
Stainless steel thread forming screw a thatna te
1. High-Quality stainless steel trilocular thread-Forming screws hian i high-strength application a tihlawhtling thei.
2. Trilocular shape hian thread siam laiin fraction a ti tlem a, locking screw chunglam aiin torque a pe tam zawk bawk.
3. Heng screw te hi a tlangpuiin pressure sang zawk a ngai a, chu chuan resistance a tihpun theih nan a hmang thin.
4. Centrilobular thread forming screw-a stainless steel material hian corrosion resistance, value leh chakna a pe a.
5. Kan company hian khawvel hmun hrang hranga fastening solution pek kawngah a inpekna leh a inpekna a famkim a.
6. Tunah hian Aya hian khawvel hmun hrang hrangah customer 1000 chuang a service mek a ni. Customer te rinna hian an thil siamte a chhe thei lo tih a tilang chiang hle.
Quality inspection .
Quality guarantee leh testing chungchangah hian fastener siamna atana thil pawimawh tak a ni. AYA-ah chuan quantitative analysis method hmanga fastener thlirletna atan inspection kimchang ber an nei thin. A tawpah chuan result report kimchang tak pawh hian quality chu a tichiang hle ang.
Packaging & Container loading .
Kan scale leh awmna hian intercontinental shipping bakah local custom clearing, warehousing, leh road transportation services-ah te cost efficiency a siam a ni. A hnuhnung ber-mile logistics kan buaipui a, DDP term hmanga invoice kan pe thei a, 3PL (third-Party Logistics) services kan pe thei bawk.
Hman dan tur scenario .
Engvangin nge Aya hi kan thlan?
