thil siam chhuah .

Head countersunk screws tihsan a ni.

Standard: ASME B 18.6.4
Thread chi hrang hrang: Mahni self-Thread tapping .
Commodity: Head countersunk screws tihsan a ni.
A hming pawh: Cross recessed head screw .
Thil hman tur: Carbon steel .
Form/shape a tip: Type AB .
A dung zawng zawng hi 4#,5#,6#,8,10#,12#,12#,16,5/16 a ni.
Finish: plain, black oxide, zinc plated, thick-film passivated(zsml), zinc flake, silver(zfshl), hot dipped galvanized, organic, geomet, dacromet, phosphating, cadmium electroplate, nickel plated
Lu chi hrang hrang: A lu / Oval lu a sang chho zel a.
Drive chi hrang hrang: A chhunga slot .
A rilru a hah lutuk chuan a rilru a buai em em a, a rilru a hah lutuk chuan a rilru a buai em em bawk a.
MOQ: 1000kgs a ni.
Lead time: Ni 30 atanga ni 60 thleng

Inquiry thawn rawh .

Product Thuhmahruai .

Aya Fasteners (Hebei) Co., Ltd. hi China rama head countersunk screw raised siamtu leh supplier zingah chuan a tawnhriat ngah ber pawl a ni a, a thil siam hi a hlawhtling hle a ni. Kan factory atang hian hetah hian China rama siam, raised head countersunk screw quality tha tak tak lei theih a ni. Price consultation atan min rawn biak theih reng e.

Black Oxide Raised Countersunk Screws-AYA Fasteners-AYA

Khawvel puma customized fastening solutions supplier a nih angin AYA service process pawh hi AYA thil siam ang bawkin customer te nen a inhnaih hle a ni. Describing needs to follow-Up services, AYA chuan rang takin leh spare no effort to desping customers solve any fastening problems that lose, to elimining the concern of customers.

Product sawifiahna .

Product hming .	Head countersunk screws tihsan a ni.
tih pawh a ni .	Cross recessed head screw .
Bungrua	Carbon steel 1000 a ni.
Nihphung pangngai	ASME B 18.6.4 a ni.
Form/shape a tip .	Type AB 1000 a ni.
Diameter 100 a ni.	4#,5#,6#,8#,10#,12#,1/4,5/16
Zo	Plain, black oxide, zinc plated, hot dipped galvanized, oxidation, dacromet, phosphating, cadmium electroplate, nickel plated
lu chi hrang hrang .	A rilru a buai em em a, a rilru a hah em em bawk a.
Drive chi hrang hrang .	A chhung lam slot .
Thread chi hrang hrang .	Mahni self-thread tapping .
A danglamna tur tehfung siam .	A rilru a hah lutuk chuan a rilru a buai em em a, a rilru a hah lutuk chuan a rilru a buai em em bawk a.

Dimensions Table 1000 a ni.

Raised Head Countersunk Screws 2D

Nominal diameter 1000 a ni. d			4#	5#	6#	6#	8#	8#	10#	12#	12#	1/4	1/4	5/16	5/16
d	Nominal diameter 1000 a ni.		0.112	0.125	0.138	0.138	0.164	0.164	0.19	0.216	0.216	0.25	0.25	0.3125	0.3125
Code 100 a ni.	Lu lian leh te .		3	4	4	5	5	6	8	8	10	10	12	12	44565
d_s1	Screw sei tak tak tan chuan shoulder nen .	min min ti a.	0.106	0.119	0.131	0.131	0.157	0.157	0.181	0.207	0.207	0.24	0.24	0.302	0.302
d_k	max a ni .		0.187	0.212	0.212	0.237	0.237	0.262	0.312	0.312	0.362	0.362	0.412	0.412	0.477
d_k	min min ti a.		0.167	0.191	0.191	0.215	0.215	0.238	0.285	0.285	0.333	0.333	0.38	0.38	0.442
k	Ref.		0.057	0.066	0.058	0.075	0.06	0.076	0.094	0.078	0.111	0.091	0.124	0.087	0.13
f	Ref.		0.033	0.037	0.037	0.041	0.041	0.045	0.076	0.076	0.06	0.06	0.068	0.068	0.079
h	Ref.		0.086	0.099	0.091	0.112	0.096	0.117	0.141	0.125	0.166	0.146	0.187	0.15	0.202
M	Screw tawi te te tan chuan .	Ref.	0.118	0.13	0.13	0.152	0.152	0.172	0.186	0.186	0.202	0.202	0.264	0.264	0.284
M	Screw sei tak tak tan chuan shoulder nen .	Ref.	0.118	0.13	0.13	0.162	0.162	0.188	0.2	0.2	0.214	0.214	0.264	0.264	0.284
t	Screw tawi te te tan chuan .	Ref.	0.072	0.086	0.086	0.073	0.073	0.092	0.107	0.107	0.125	0.125	0.14	0.14	0.16
t	Screw sei tak tak tan chuan shoulder nen .	Ref.	0.072	0.086	0.086	0.084	0.084	0.108	0.122	0.122	0.136	0.136	0.14	0.14	0.16
N	Ref.		0.019	0.019	0.019	0.028	0.028	0.031	0.031	0.031	0.033	0.033	0.038	0.038	0.04
Socket no.			1	1	1	2	2	2	2	2	2	2	3	3	3
Penetration thuk zawng .	Screw tawi te te tan chuan .	max a ni .	0.074	0.087	0.087	0.074	0.074	0.094	0.108	0.108	0.126	0.126	0.135	0.135	0.156
	Screw tawi te te tan chuan .	min min ti a.	0.057	0.07	0.07	0.05	0.05	0.069	0.084	0.084	0.102	0.102	0.111	0.111	0.131
	Screw sei tak tak tan chuan shoulder nen .	max a ni .	0.074	0.087	0.087	0.085	0.085	0.11	0.124	0.124	0.137	0.137	0.135	0.135	0.156
	Screw sei tak tak tan chuan shoulder nen .	min min ti a.	0.057	0.07	0.07	0.061	0.061	0.085	0.099	0.099	0.112	0.112	0.111	0.111	0.131

Product details .

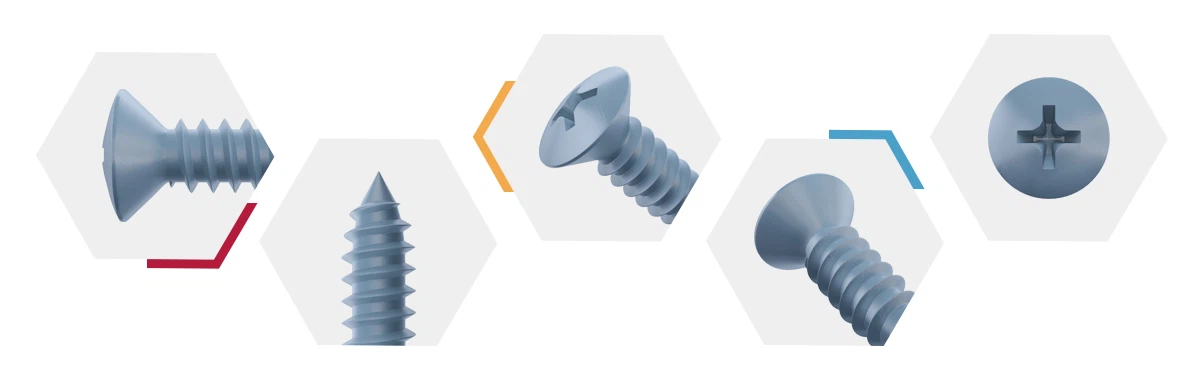

Raised Head Countersunk Screws details

Product a thatna te .

Raised Head Countersunk Screws advantage

Head countersunk screw raised te thatna te

1. Countersunk hian extra grip a pe a, a chunglam chu he screw hi a tight a ni.

2. Lu sang tak, screwdriver fitting area thuk tak nei chuan a tikhauh a, a ti na lo bawk.

3. Hetiang chi screw hi thinga thing dahna atan hman a ni tlangpui a, mahse hinge, handle leh lock ang chi metal te chu thingah an dah thin bawk.

4. AYA chuan product tinte siam chhuah danah international standards a zawm a, an customer te hnena durable, customized fastening solution pe turin productive technology hmangin hna a thawk reng bawk.

5. Company hian a rang thei ang bera order pe thei tur supply-chain system thiam tak a nei a, an customer te tanpui theihna tur responsive logistic system rang tak a nei bawk.
