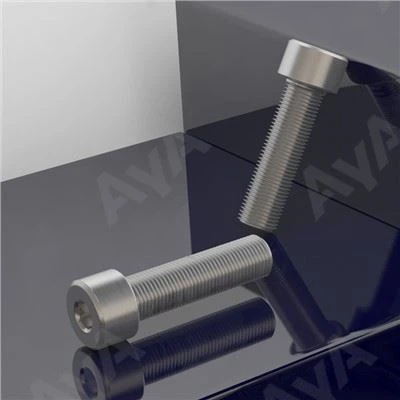

Stainless socket lu bolt a awm bawk.

Aya Fasteners (Hebei) Co., Ltd. hi China rama stainless socket head bolt siamtu leh supplier zingah chuan a tawnhriat ngah ber pawl a ni. Kan factory atang hian hetah hian China rama siam stainless socket head bolt quality tha tak tak lei theih a ni. Price consultation atan min rawn biak theih reng e.





Khawvel puma customized fastening solutions supplier a nih angin AYA service process pawh hi AYA thil siam ang bawkin customer te nen a inhnaih hle a ni. Describing needs to follow-Up services, AYA chuan rang takin leh spare no effort to desping customers solve any fastening problems that lose, to elimining the concern of customers.



Product sawifiahna .



---



Product hming .	Stainless socket lu bolt a awm bawk.
tih pawh a ni .	Socket Cap Bolt 1000 a awm bawk.
Bungrua	stainless steel a ni a.
Nihphung pangngai	JIS B 1176 a ni.
Property class 100 a awm bawk.	M20 aia tlem emaw, a tlukpui emaw: A2-70, A4-70; > M20 chu M39 aia tlem emaw a tlukpui emaw a ni: A2-50, A4-50.
Diameter 100 a ni.	M1.6, M2, M2.5, M3, M4, M5, M6, M8, M10, M12, (M14), M16, (M18), M20, (M22), M24, (M27), M30, (M33), M36, M42, M48, M56, M64
Zo	Plain / passivated / customization .
lu chi hrang hrang .	Socket lu a ni .
Drive chi hrang hrang .	Hexagon socket 1000 a ni.
Thread chi hrang hrang .	Coarse thread / thread tha tak a ni.
Thread sei zawng .	Thread kimchang / Thread thenkhat .



Dimensions Table 1000 a ni.



---







Thread size 1000 a ni.					M1.6	M2	M2.5	M3	M4	M5	M6	M8	M10	M12
d
P		Mual	Coarse thread .		0.35	0.4	0.45	0.5	0.7	0.8	1	1.25	1.5	1.75
			Thread tha tak, 1 .		-	-	-	-	-	-	-	1	1	1.5
			Thread tha tak, 2 .		-	-	-	-	-	-	-	-	-1.25	-1.25
b		Ref.			15	16	17	18	20	22	24	28	32	36
DK 10 a ni.		max a ni .	Plain heads tan .		3	3.8	4.5	5.5	7	8.5	10	13	16	18
			Knurled lu tan .		3.14	3.98	4.68	5.68	7.22	8.72	10.22	13.27	16.27	18.27
		min min ti a.			2.86	3.62	4.32	5.32	6.78	8.28	9.78	12.73	15.73	17.73
DS 10 a ni.		max a ni .			1.6	2	2.5	3	4	5	6	8	10	12
		min min ti a.			1.46	1.86	2.36	2.86	3.82	4.82	5.82	7.78	9.78	11.73
k		max a ni .			1.6	2	2.5	3	4	5	6	8	10	12
		min min ti a.			1.46	1.86	2.36	2.86	3.82	4.82	5.7	7.64	9.64	11.57
s		Nominal size a ni.			1.5	1.5	2	2.5	3	4	5	6	8	10
		max a ni .			1.58	1.58	2.08	2.58	3.08	4.095	5.14	6.14	8.175	10.175
		min min ti a.			1.52	1.52	2.02	2.52	3.02	4.02	5.02	6.02	8.025	10.025
t		min min ti a.			0.7	1	1.1	1.3	2	2.5	3	4	5	6
Thread size 1000 a ni.					(M14)	M16	M20	M24	M30	M36	M42	M48	M56	M64
d
P		Mual	Coarse thread .		2	2	2.5	3	3.5	4	4.5	5	5.5	6
			Thread tha tak, 1 .		-	1.5	1.5	2	2	3	-	-	-	-
			Thread tha tak, 2 .		-1.5	-	-2	-	-	-	-	-	-	-
b		Ref.			40	44	52	60	72	84	96	108	124	140
DK 10 a ni.		max a ni .	Plain heads tan .		21	24	30	36	45	54	63	72	84	96
			Knurled lu tan .		21.33	24.33	30.33	36.39	45.39	54.46	63.46	72.46	84.54	96.54
		min min ti a.			20.67	23.67	29.67	35.61	44.61	53.54	62.54	71.54	83.46	95.46
DS 10 a ni.		max a ni .			14	16	20	24	30	36	42	48	56	64
		min min ti a.			13.73	15.73	19.67	23.67	29.67	35.61	41.61	47.61	55.54	63.54
k		max a ni .			14	16	20	24	30	36	42	48	56	64
		min min ti a.			13.57	15.57	19.48	23.48	29.48	35.38	41.38	47.38	55.26	63.26
s		Nominal size a ni.			12	14	17	19	22	27	32	36	41	46
		max a ni .			12.212	14.212	17.23	19.275	22.275	27.275	32.33	36.33	41.33	46.33
		min min ti a.			12.032	14.032	17.05	19.065	22.065	27.065	32.08	36.08	41.08	46.08
t		min min ti a.			7	8	10	12	15.5	19	24	28	34	38





Product details .



---





Product a thatna te .



---





A thatna te .



---



1. Stainless Socket Head Bolt hi hmanna hrang hrangah hman a ni a, chutah chuan fastening solution him leh nghet tak neih a ngai a ni.
2. Stainless steel hian rust leh corrosion lakah a do thei hle a, heng bolt te hi in chhung leh pawn lama hman tur atan a tha a, chubakah boruak lum emaw chemical emaw a awm theihna tur hmun a siam bawk.
3. Stainless steel hian a hmel a faiin a ti mawi a, hei hian aesthetics pawimawh tak takna hmunah chuan duhthlan tur lar tak a ni.
4. Stainless socket head bolt hi a lian zawng, a sei zawng leh thread chi hrang hrang a awm a, chu chuan mamawh hrang hrang a huam thei a ni. Application leh load mamawh bik a zirin bolt size leh grade dik tak thlan a pawimawh hle.



Quality inspection .



---





Packaging & Container loading .



---





Hman dan tur scenario .



---





Engvangin nge Aya?



---



AYA hian kum tin khawvel hmun hrang hrang atanga 1000+ member te tan exclusive services a pe thin a, chain service solution system danglam tak neiin, exclusive fastening solution i hmuh theih nan mouse kha click la, door-to{2}}door services en rawh.

hot tags .: Stainless Socket Head Bolts, China, Suppliers, Manufacturers, Factory, Buy, Price, hralh tur, China rama siam
